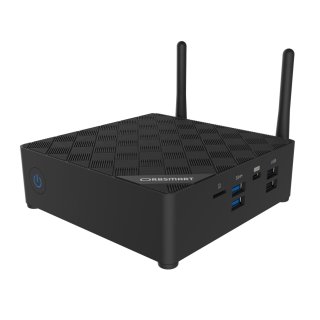

The Orbsmart AW-15 Mini-PC of the latest generation based on Windows™ 11 Pro in a compact & fanless housing. The newest processor generation Intel™ "Alder Lake" with the quad-core N100 plus 16GB RAM and a fast 512GB SSD offers sufficient performance for intensive programs and Tasks. The AW-15 and can be used universally for many areas of application, e.g. as an office PC, media center or streaming box or in the professional sector as a thin client, digital signage player etc.
Key Features:
- Allrounder: Office-PC, Mediacenter, Streaming Player and much more
- Fanless housing including M.2 SSD slot / Autostart + WOL + PXE + RTC Support
- Full Windows 11 Professional (64-Bit) operating system pre-installed
- Intel Quad Core "Alder Lake" N100 CPU / 16GB DDR4-RAM / 512GB NVMe SSD
- Integrated Dualband WIFI 6 b/g/n/ac/ax (2.4/5GHz) + Bluetooth 5.2 + 2.5 Gigabit-LAN
- Triple Display: HDMI 2.0 + mDP 1.2 + VGA / USB 3.1 Typ-C, 2x USB 3.1, 2x USB 2.0 / 3.5mm Audio / microSD-Slot
Fanless - robust - energy efficient
The Orbsmart AW-15 is a Windows 11 Mini-PC with extremely compact dimensions (13 x 13 x 4 cm). The housing is of high quality and the passive and completely fanless cooling enables an absolutely silent operation. The power consumption is only a few watts even under full load.
Jasper Lake
The newest Intel chip generation "Alder Lake" is used in the AW-15 with the powerful Intel™ N100 Quadcore Processor (Burst freq:3.40 GHz) plus 16GB DDR4-RAM main memory. The performance offers more than enough power reserves even for demanding office applications, web browsing or smaller games. A fast 52GB SSD (NVMe) is also available for storage. The memory can be expanded by up to 512GB with a microSD card.
Windows™ 11 Professional
The highlight: a full Windows 11 Professional (64-bit) version is already preinstalled as the operating system. Turn any monitor or TV into a complete PC with this Windows Mini PC. All programs supported by Windows 11 such as Microsoft Office, KODI, VLC, TeamViewer, Skype & Co can be installed without any problems. Thanks to HTML5 & Silverlight support, the AW-15 is ideal as a streaming Computer.
High versatility
This mini computer is extremely versatile! Thanks to Windows 11, there are almost no limits: ideal as an Office-PC (Microsoft Office, Zoom, Skype), Streaming Box (YouTube, Prime Video, Netflix, Skygo, Magenta TV, Disney+ & Co.), Media Player (KODI Mediacenter, PLEX etc.) or in the professional area for companies in 24/7 operations (digital signage, thin client, automation, workstation, server).
4K ULTRA HD
The Orbsmart Windows computer supports resolutions up to 2160p thanks to the integrated HDMI 2.0 and/or Mini DisplayPort 1.2 connection. Enjoy streaming services, videos or images in ultra-high definition quality - no need to buy an additional computer. A third monitor can also be connected via VGA.
Triple Display
In addition to the HDMI and Mini DisplayPort, there is also a VGA connection built into the case (VGA cable not included in the delivery contents). Up to three monitors can be connected at the same time and used as an additional Display.
M.2 SSD
The AW-15 allows the installation of an additional M.2 SATA SSD (2242). The base plate can be removed without additional tools. The storage space can be expanded without an additional external USB hard drive or micro SD Card.
USB 3.1
With this Mini-PC Box, three USB 3.1 ports are available. One of them is already a modern USB 3.1 Type-C port (only for data exchange & power supply). In principle, any mouse/keyboard, Airmouse, USB stick/hard drive or DVD/BD drive can be connected without any problems.
WIFI 6 + BT 5.2
The AW-15 Mini PC Windows 11 offers high connectivity. The external WIFI antennas (Dualband 2.4/5 GHz) with WIFI 6 standard offers a high range and data rates. Additional devices (e.g. mouse/keyboard, headset and much more) can be connected via wireless Bluetooth 5.2 technology. Alternatively, the 2.5 Gigabit LAN connection offers a stable connection to your router or home network. The AW-15 is also a perfect streaming media player.
Mounting Kit included
Ready to go: the AW-15 offers a wide range of accessories. In addition to an HDMI 2.0 cable, EU power supply unit, thermal pad (for M.2 SSD) and a german/english manual, there is also a bracket for a TV/monitor (VESA 75×75 / 100×100) in the box Equipment.
Lieferumfang:
- Orbsmart AW-15
- HDMI Cable
- Power Adapter
- TV Mounting Kit
- Screws
- Manual (english/german)
Product safety information
Manufacturer information:
Capoyo GmbH
Rotwandweg 3
Bayern
Taufkirchen, Deutschland, 82024
info@capoyo.de
https://www.capoyo.de/
|
OS
|
Windows 11 Professional (64-Bit) preinstalled
|
|
Main Chip
|
Intel™ Alder Lake-N (Burst freq: 3.40 GHz) |
|
Memory
|
16 GB SODIMM DDR4-RAM
|
|
Storage
|
512 GB NVMe SSD (2280)
|
|
Wireless
|
WIFI 6 - 802.11b/g/n/ac/ax (2.4/5 GHz), Bluetooth 5.2
|
|
Expand Memory
|
SD card slot up to 512GB
|
|
IO/Ports
|
HDMI 2.0 x 1, VGA x 1, mDP 1.2 x 1, USB 3.1 x 2, USB 3.1 Type-C x 1, USB 2.0 x 2, 2.5 Gigabit-LAN x 1, 3.5mm Audio x 1
|
|
M.2 SSD
|
M.2 NVMe SSD (2280 - in use) / M.2 NVMe SSD B-Key (2242 - available)
|
|
VESA
|
75x75 / 100x100
|
| AC Adapter |
AC 110~240V, 50/60Hz, 12V/2A
|
|
Weight
|
~465g
|
|
Dimensions
|
13 x 13 x 4 cm
|
Q: Ist ein vollwertiges Windows 11 Betriebssystem vorinstalliert?
A: Ja, es ist ein vollwertiges Windows 11 (64-Bit) Professional vorinstalliert. Alle kompatiblen Programme lassen sich generell installieren.
Q: Wo finde ich ein ausführliches Handbuch zu Windows 11?
A: Ein ausführliches Handbuch zu den Features von Windows 11 finden Sie hier zum Download.
Q: Welche Menüsprachen unterstützt der AW-15?
A: Neben dem vorinstallierten Deutsch und Englisch lassen sich auch noch viele andere wie Spanisch, Französisch, Chinesisch, Italienisch etc. nachinstallieren.
Q: Fährt der AW-15 direkt bei Stromzufuhr hoch?
A: Ja, der AW-15 unterstützt das Autostart-Feature.
Q: Wie kann ich die Windows Box steuern bzw. bedienen?
A: Entweder mit der kostenfreien Windows Remote App, mit einer Maus und Tastatur (USB/Funk/Bluetooth, z.B. Orbsmart AM-2) oder Airmouse (Orbsmart WA-1).
